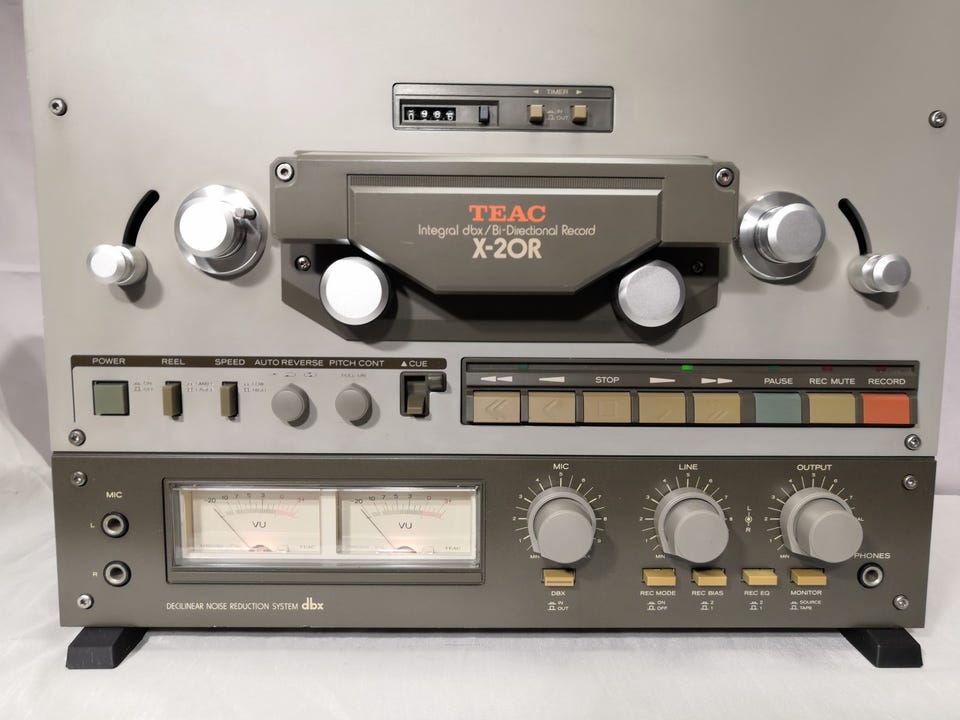

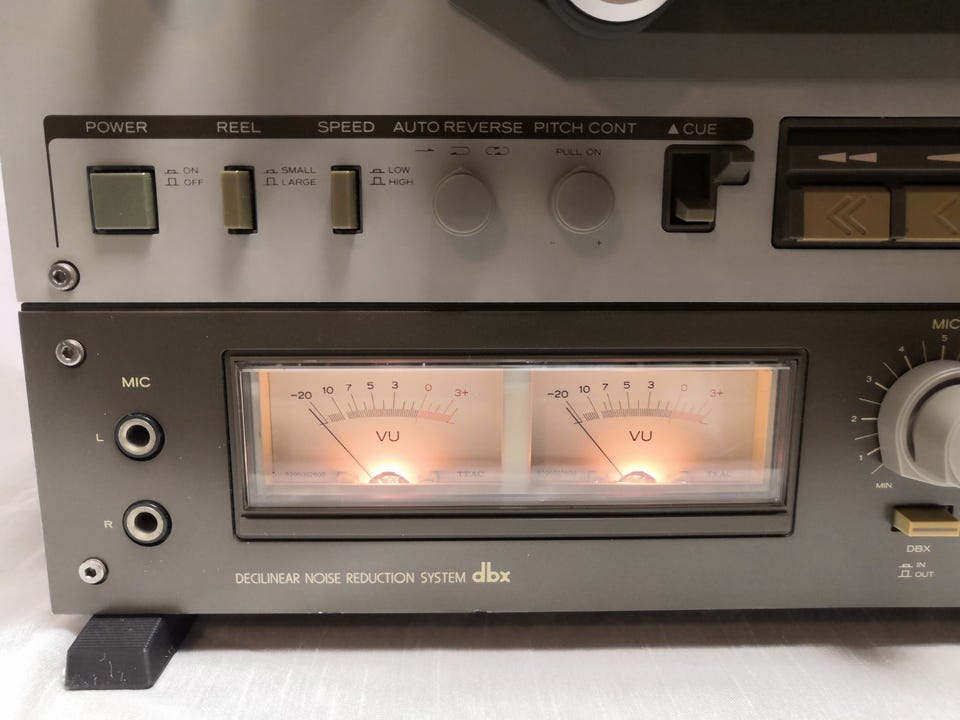

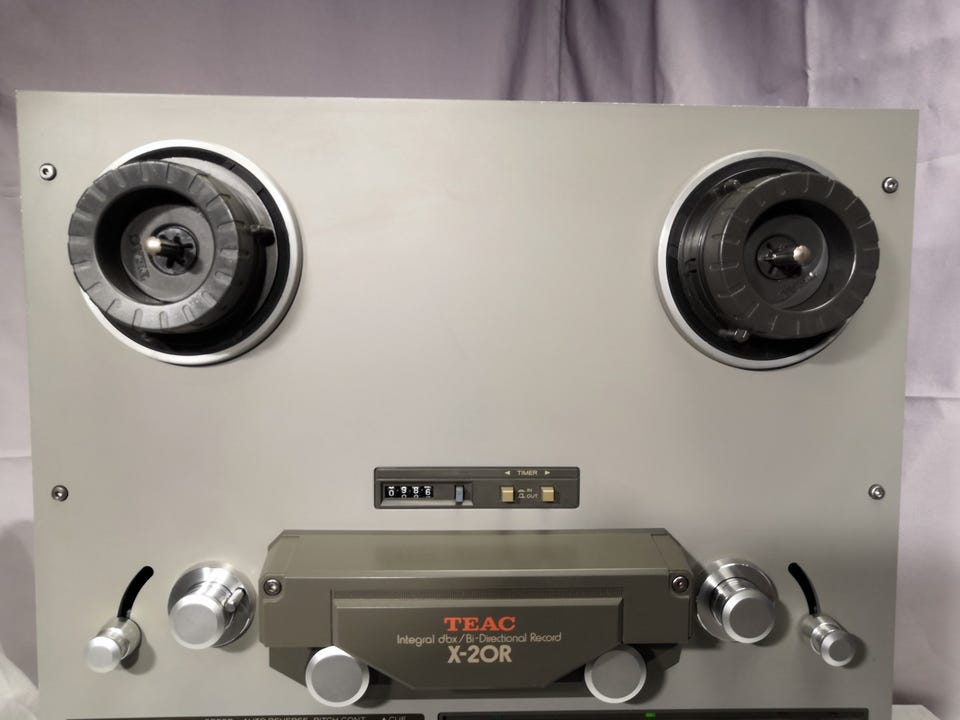

Teac X-20R DBX Auto-Reverse kelanauhuri

Ihan siisti ja toimiva kelanauhuri. Nauhoitus äänipäät nyt uusittu kokonaan. Japanilainen versio 100V. Muuntaja mukaan. Kelat eivät kuulu hintaan.

Track System 4 Track 2 Channel Stereo

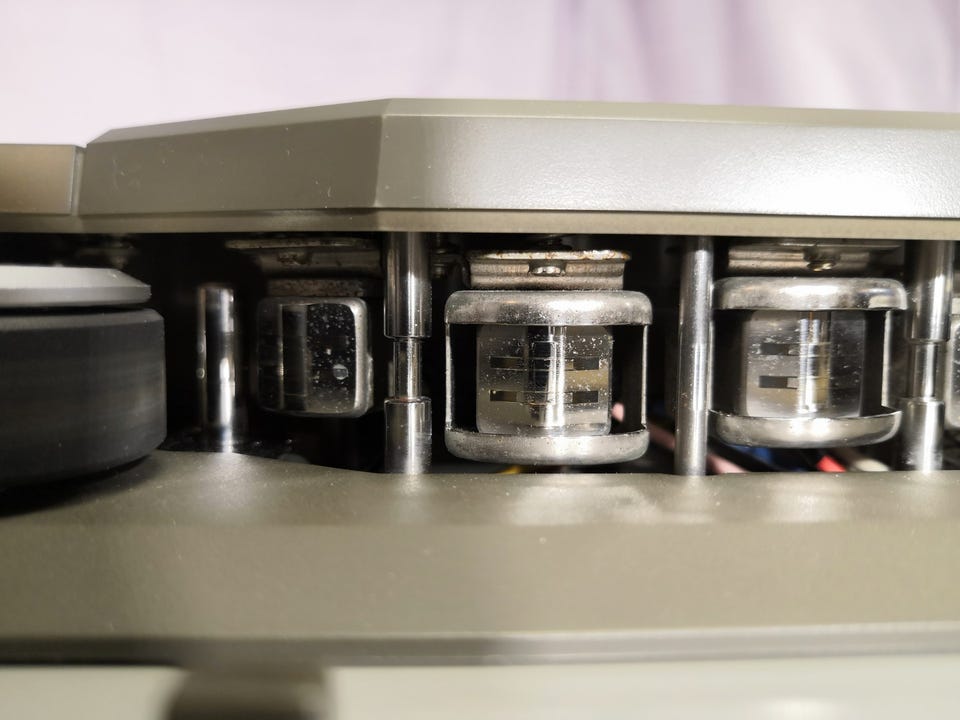

Head System

Forward Erase x1

Forward Record x1

Forward Playback x1

Reverse Erase x1

Reverse Record x1

Reverse Playback x1

Reel Size 10-1/2" and 7"

Tape Speed 7-1/2 ips and 3-3/4 ips (±0.5 %)

Motors

Capstan Motor: FG Servo DC Motor x1

Reel Motor: DC Slotless Motors x2

Wow and Flutter (WRMS)

0.03% at 7-1/2 ips

0.04 % at 3-3/4 ips

Frequency Response (Overall)

30 - 28 000 Hz (±3 dB, 40 - 20 000 Hz-10 VU) at 7-1/2 ips

30 - 20 000 Hz (±3 dB, 40 - 16 000 Hz-20 VU) at 3-3/4 ips

Signal to Noise Ratio (Overall)

63dB (3%THD Level, Weighted) DBX OUT

100dB (3%THD Level, Weighted) DBX IN

Harmonic Distortion (Overall): 0.8 % at 1 000 Hz normal operating level

Stereo Channel Separation: 50dB at 1 000 Hz

Fast Wind Time Approx. 100 sec.: for 1800 feet

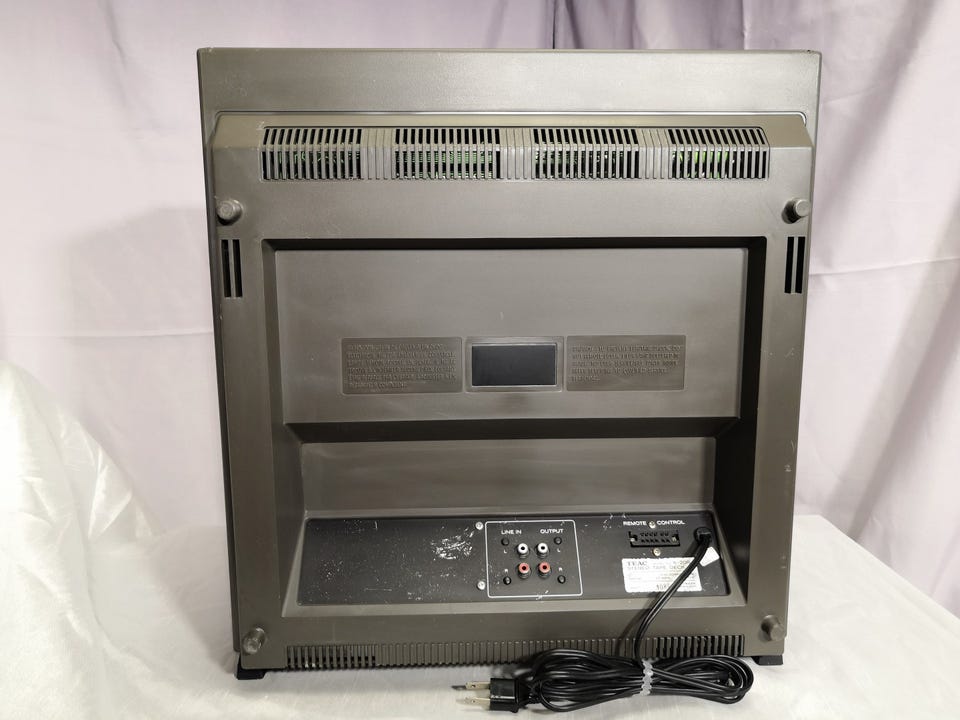

Inputs: Line 60 mV, 50 kohms

Microphone: 0.25mV/-72dB (200 ohms or more)

Outputs: Line 0.45 V for load impedance of 10 kohms or more

Headphones: 8 ohms

Power Requirements: 220/240 V; AC, 50/60 Hz

Power Consumption: 80 W

Dimensions 432x452x262 mm

Weight: 21.5 kg
