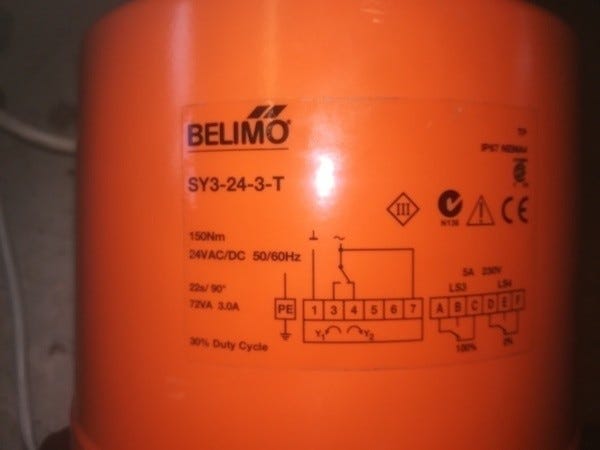

Venttiili actuator väestösuojaan, ym

Käyttämätön servo actuator venttiilien, ym ohjaukseen. Toimii kammella myös ilman sähköä. kampea ei tule mukana! hinta kaupassa 1500euro

linkki.

https://www.belimo.fi/pdf/e/SY3-24-3-T_datasheet_en-gb.pdf

Toimitus:Rahat->ja tuote matkahuoltoon. Rahti 10.00euro. Tietenkin myös nouto!!

Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Nominal voltage range AC 21.6...26.4 V / DC 21.6...26.4 V Power consumption in operation 70 W Power consumption in operation note incl. heating Power consumption for wire sizing 78 VA Current consumption 3.3 A Auxiliary switch 2 x SPDT, 1 x 3° / 1 x 87° Switching capacity auxiliary switch 1 mA...5 (3 inductive) A, DC 5 V ... AC 250 V Connection supply / control Terminals 2.5 mm² (Wire 2 x 1.5 mm² or 1 x 2.5 mm²) Parallel operation No Functional data Torque motor 150 Nm Manual override temporary with handwheel (non-rotating) Angle of rotation 90° Angle of rotation note Internal limit switch, not adjustable Running time motor 25 s Duty cycle 30 % (= active time 25 s / operating time 83 s) Sound power level motor 70 dB(A) Position indication Mechanically (integrated) Safety Protection class IEC/EN I Protective earth Protection class auxiliary switch IEC/EN I Protective earth Degree of protection IEC/EN IP67 EMC CE according to 2014/30/EU Low voltage directive CE according to 2014/35/EU Mode of operation Type 1 Control pollution degree 4 Ambient temperature -30...65°C Non-operating temperature -30...80°C Ambient humidity 95% r.h., non-condensing Maintenance Maintenance-free Mechanical data Connection flange F07 Weight Weight 11 kg Materials Housing material Aluminium pressure casting

Toimitus.rahat ja paketti matkahuoltoon toimitus 15euro tai nouto ja käteinen
