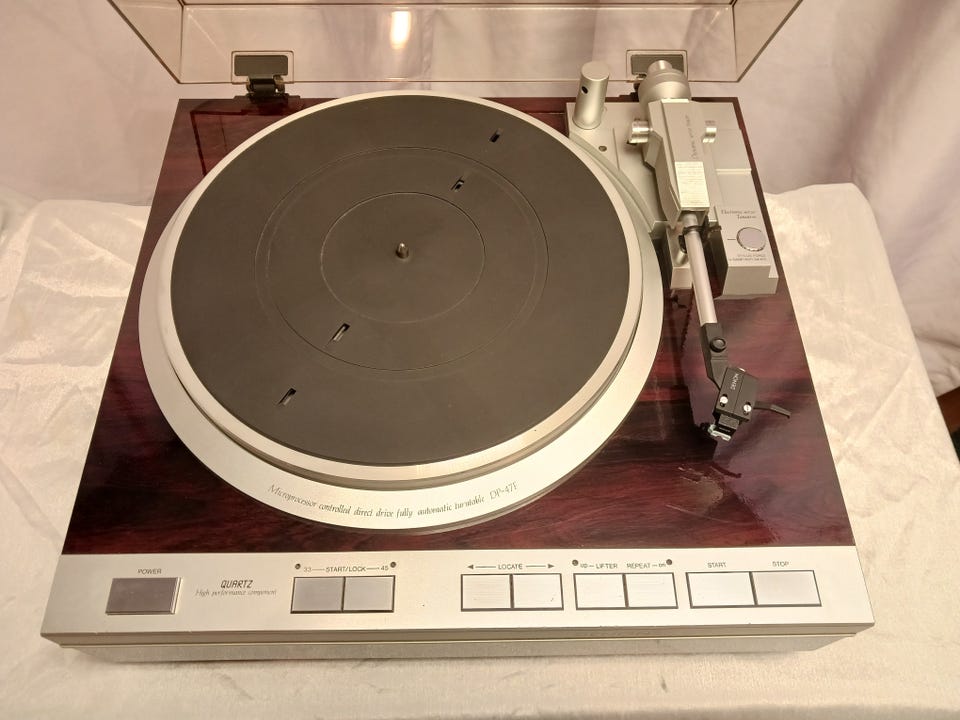

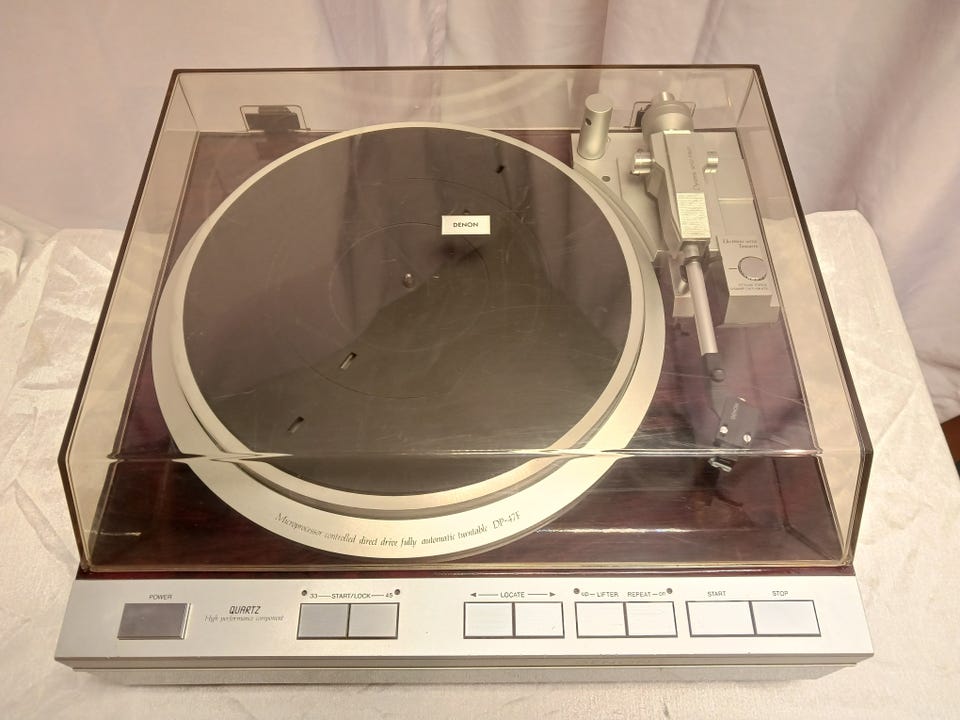

Denon DP-47F täysautomaatti levysoitin

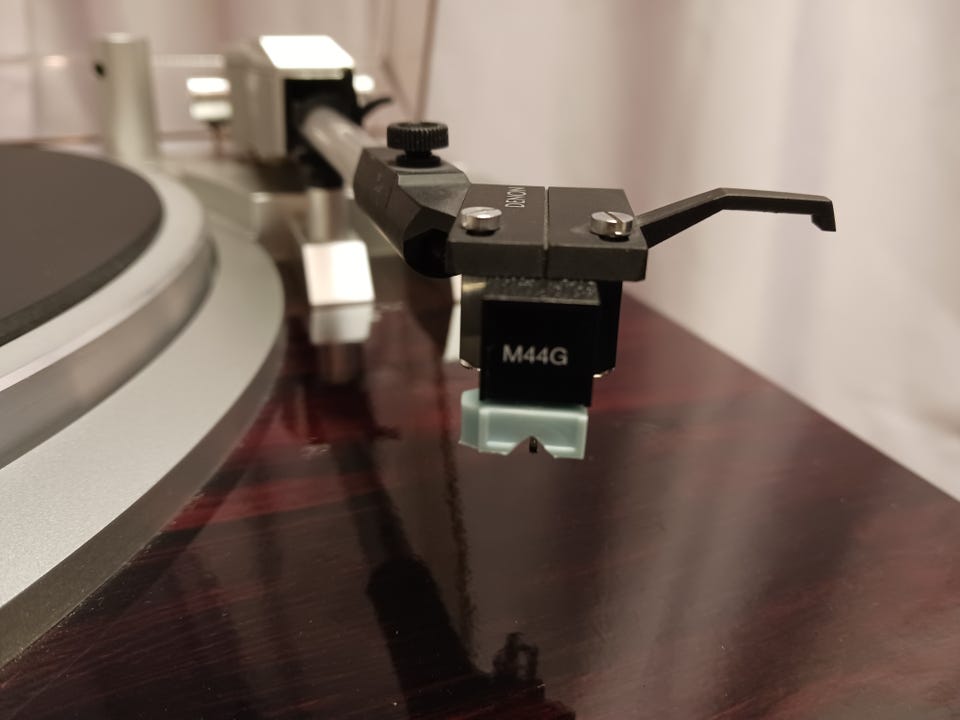

Hyvässä kunnossa ja täysin ehjä levysoitin. Kannella on pieniä naarmuja. Äänirasia SHURE M44G uudella neulalla. Japanilainen 100V versio ja pienikokoinen muuntaja mukaan.

Commentary

A full auto player equipped with an arm that employs a dynamic servo tracer.

The turntable uses a DENON quartz turntable with magnetic recording detection method.

Stable rotational performance and quick operation have been achieved by adding a bidirectional servo and electronic brake to the combination of magnetic recording detection method and quartz lock.

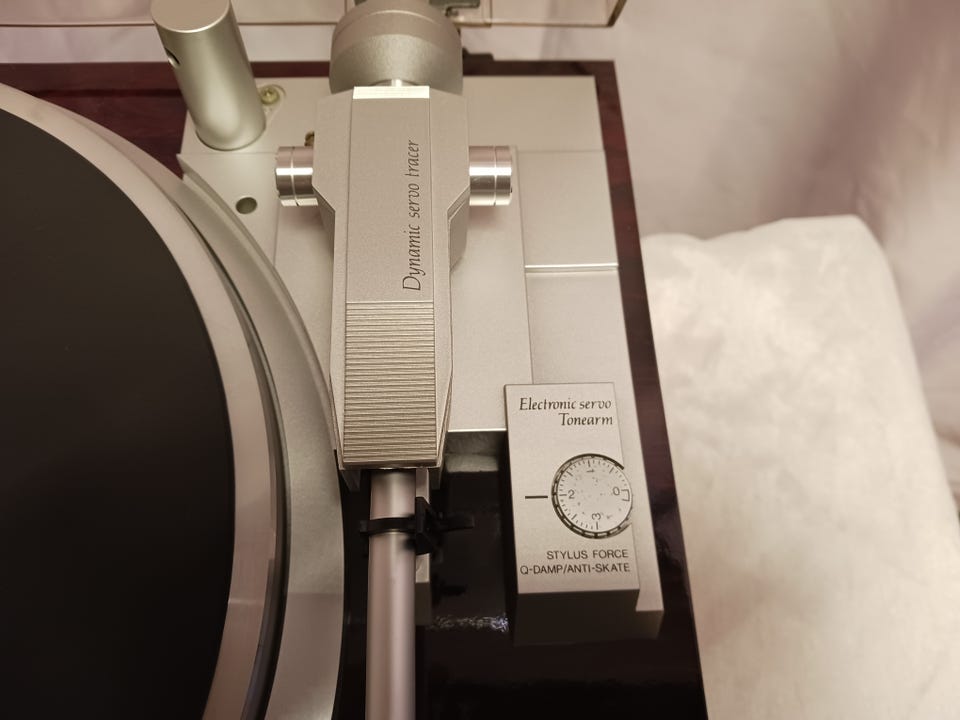

An electronically controlled contactless tone arm equipped with a dynamic servo tracer is used for the tone arm.

In the dynamic servo tracer, the low-frequency resonance due to the compliance of the cartridge and the effective mass of the tone arm is electronically damped in both horizontal and vertical directions, effectively suppressing the deterioration of crosstalk and cross-modulation distortion.

A light mass arm is adopted for the arm body.

It uses an automatic size detection and speed switching mechanism, and automatically detects LP record (33 1/3 rotation) and single record (45 rotation) in automatic performance, and automatically switches speed.

In addition, when there is no record, the tone arm does not operate even if the start button is pressed.

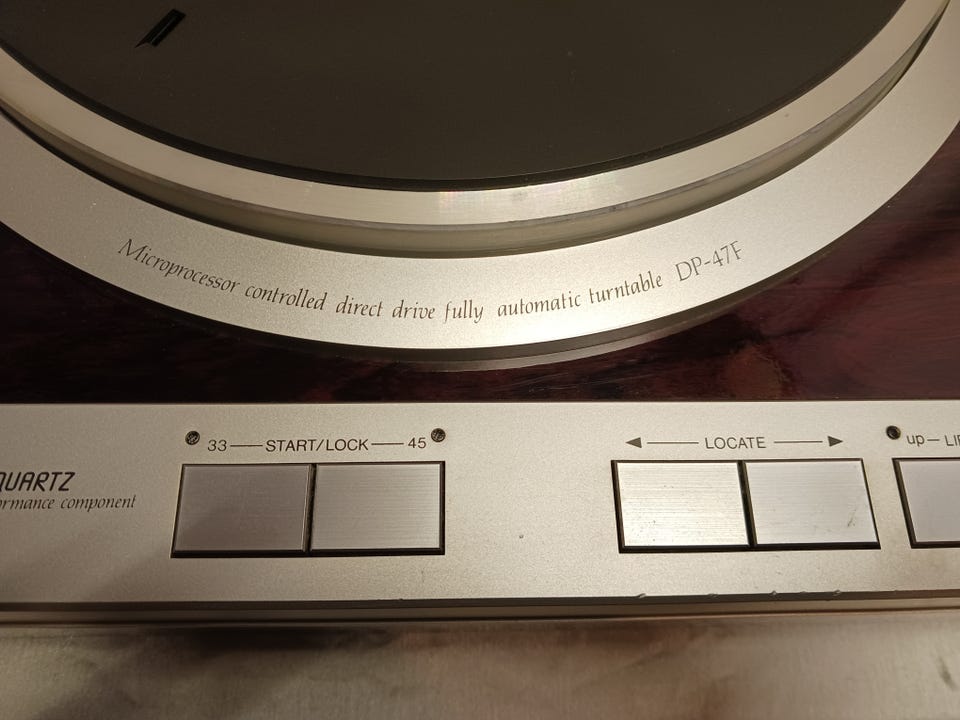

Equipped with a locating mechanism, it can be moved to the desired position by pressing the button without touching the tone arm.

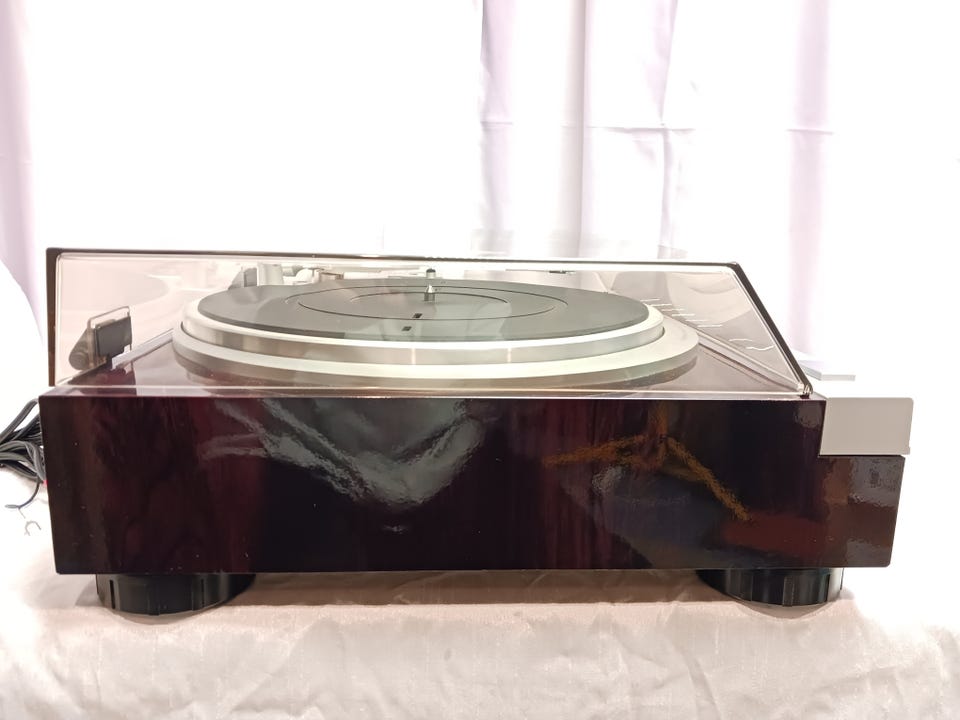

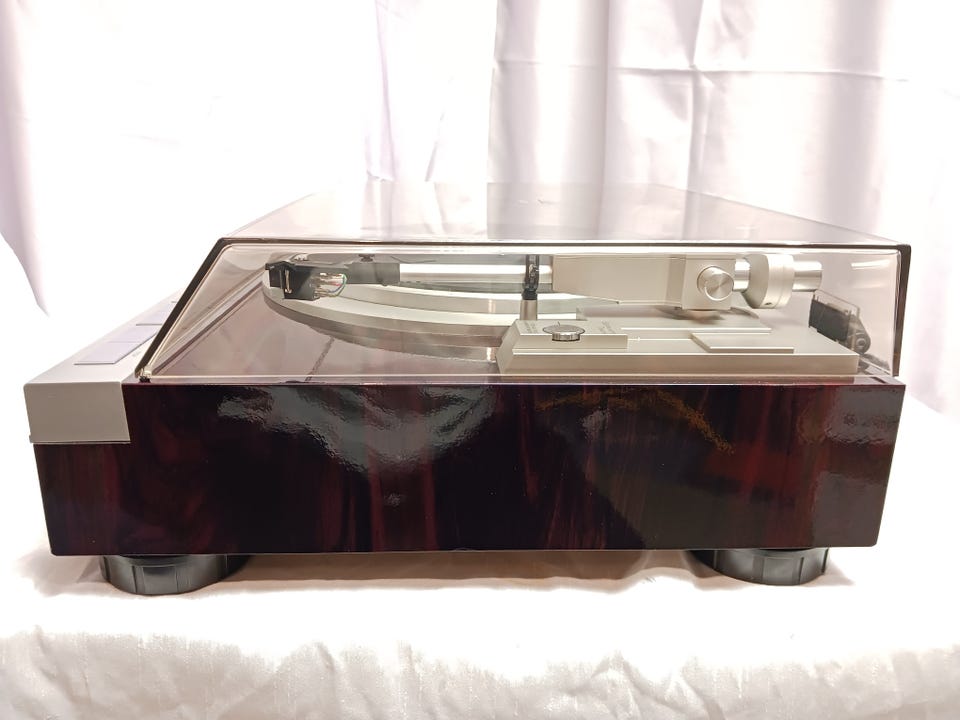

A large cabinet with a mirror finish of 85 mm height is used for the cabinet.

The legs are equipped with a new type of insulator that takes into consideration the Howling characteristics.

Model Rating

Type Full auto player

Phono Motor Section

Drive system DENON quartz, bidirectional servo type direct drive

Number of revolutions 33 1/3, 45 rpm, With Electronic Brake

Wow flutter 0.01% Wrms or Less (Rotating System)

0.02% Wrms or Less (JIS)

Signal-to-noise ratio 78 dB or more

Startup time Within 2 seconds (33 1/3 o'clock)

Load characteristic 0% (Needle Pressure 80g, Outermost Circumference)

Turntable Aluminum Die-cast 31 cm

Arm Section

Type Dedicated Shell Replacement Straight / Dynamic Balance Type, Electronic Needle Pressure Application, Dynamic Servo Tracer

Effective length 220mm

Overhang 16mm

Needle pressure adjustment range 0 ~ 3g (0.1g per scale)

Applicable Cartridge Dead Weight Approx. 3 ~ 12g (Including Screws and Nuts)

Anti-skating Contactless electronic

Head shell PCL-40

Shell dead weight 4.1g

Type MC Type

Model Name DL-80MC

Output voltage 1.6mV

Playback frequency 20 Hz to 45 kHz

Needle pressure 1.8 ± 0.3g

Needle exchange DSN-80:¥6,500

Accessory function Automatic record size detection

Lifter switch

Repeat switch

Locate mechanism

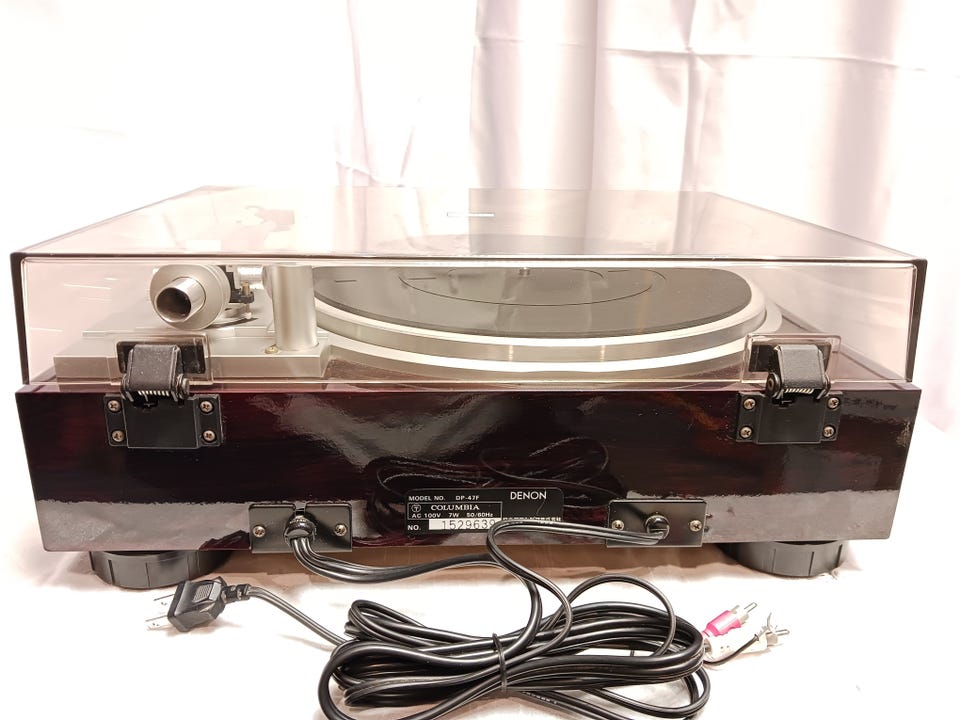

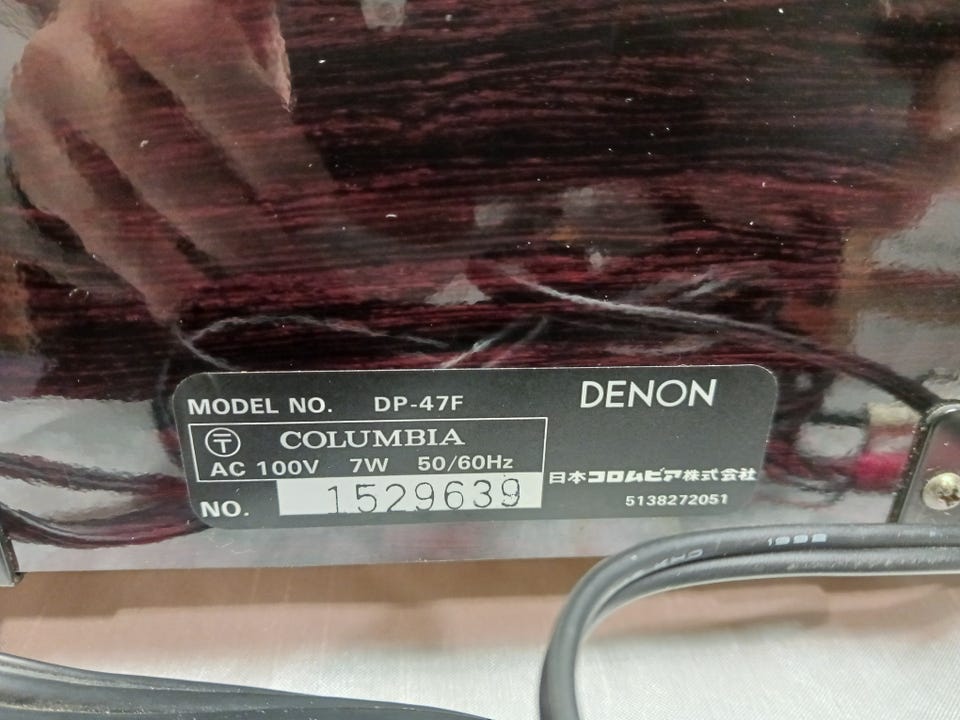

Pwer 100 VAC, 50Hz/60Hz

Power consumption Approx. 7W

External dimensions Width 434x Height 179x Depth 410 mm (With Dust Cover Closed)

Weight Approx. 8.5 kg
