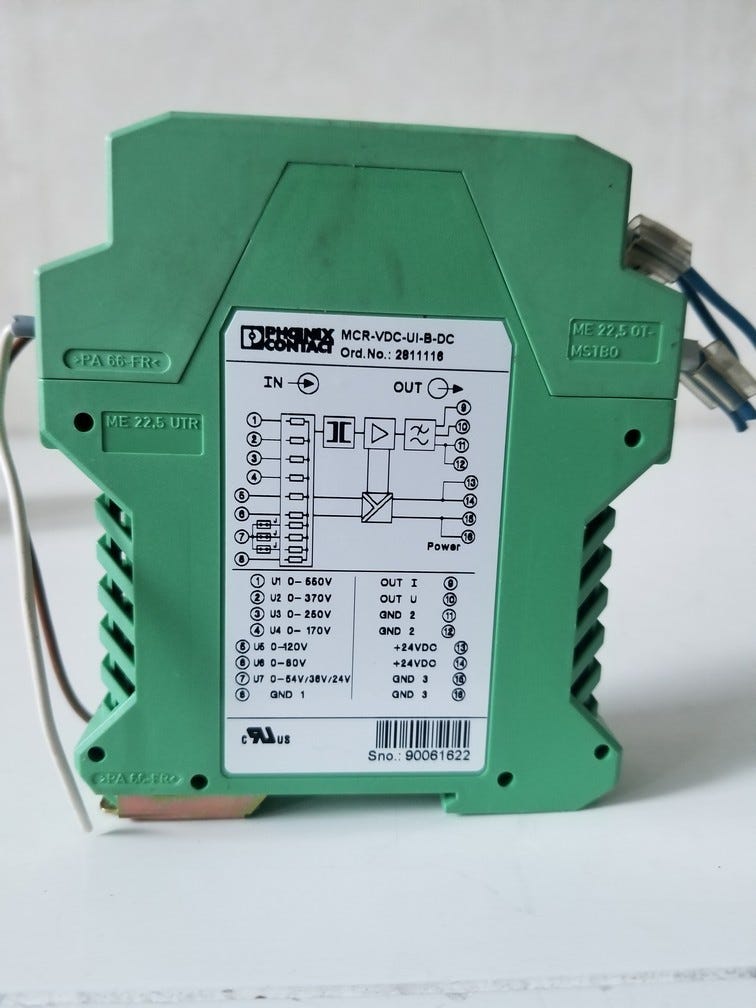

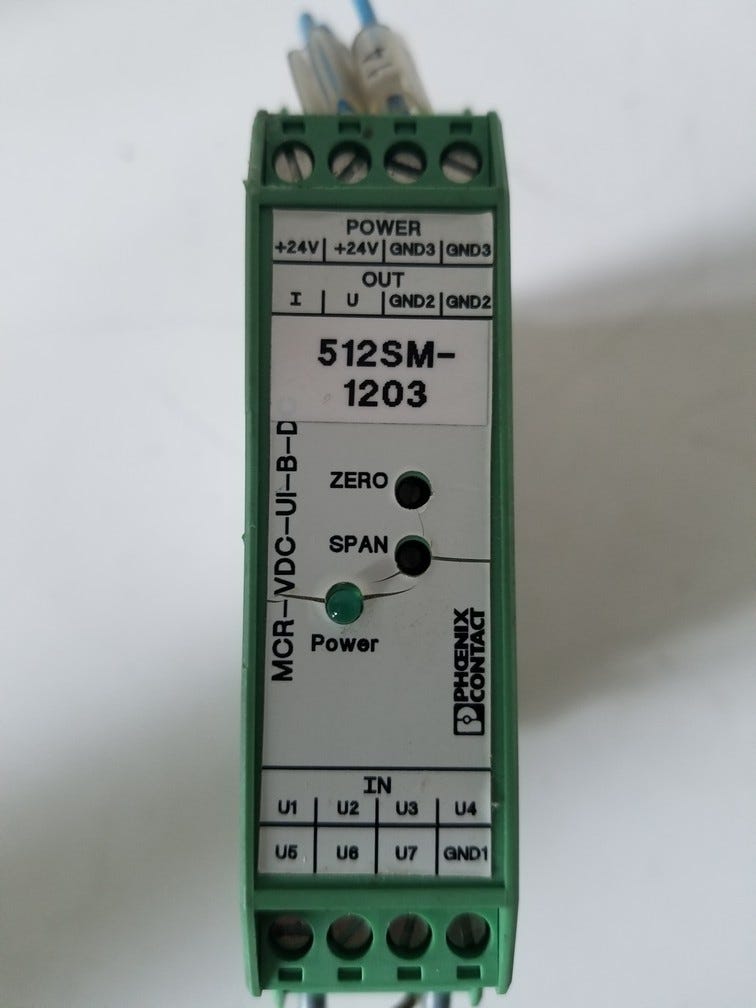

Phonenix Contact MCR=VDC-UI-B-D voltage transducer 2811116

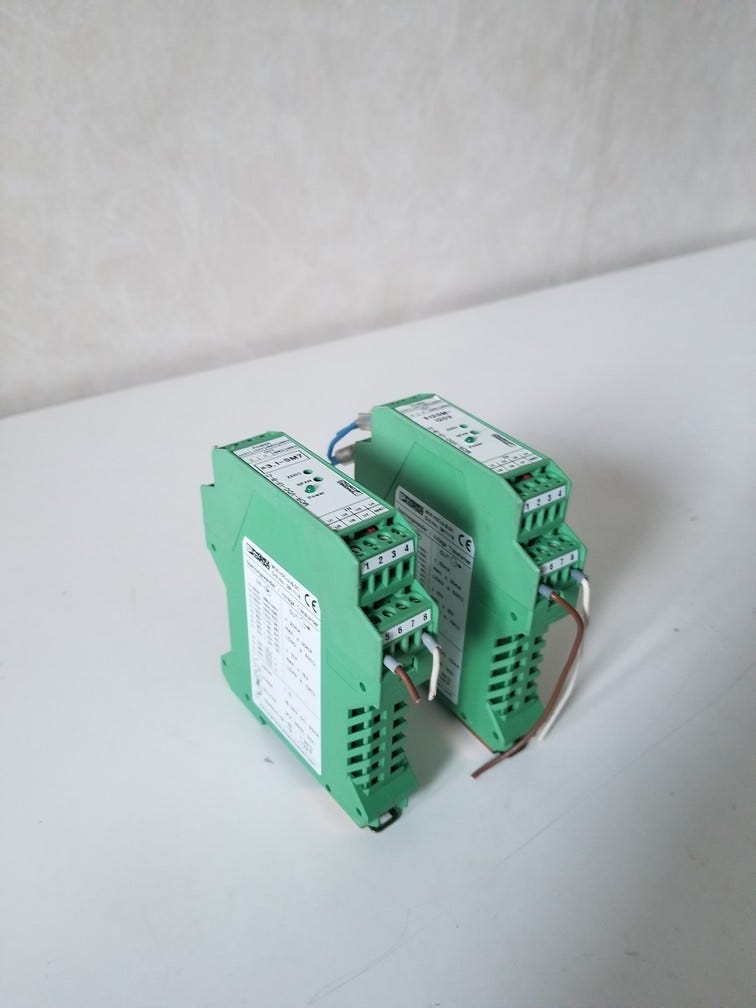

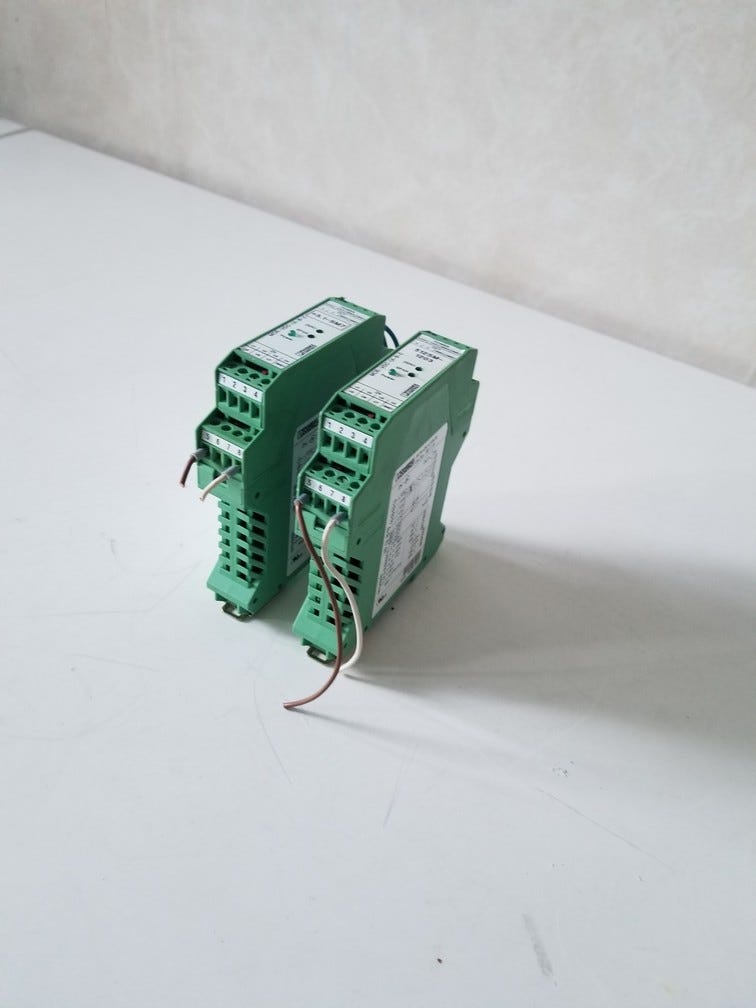

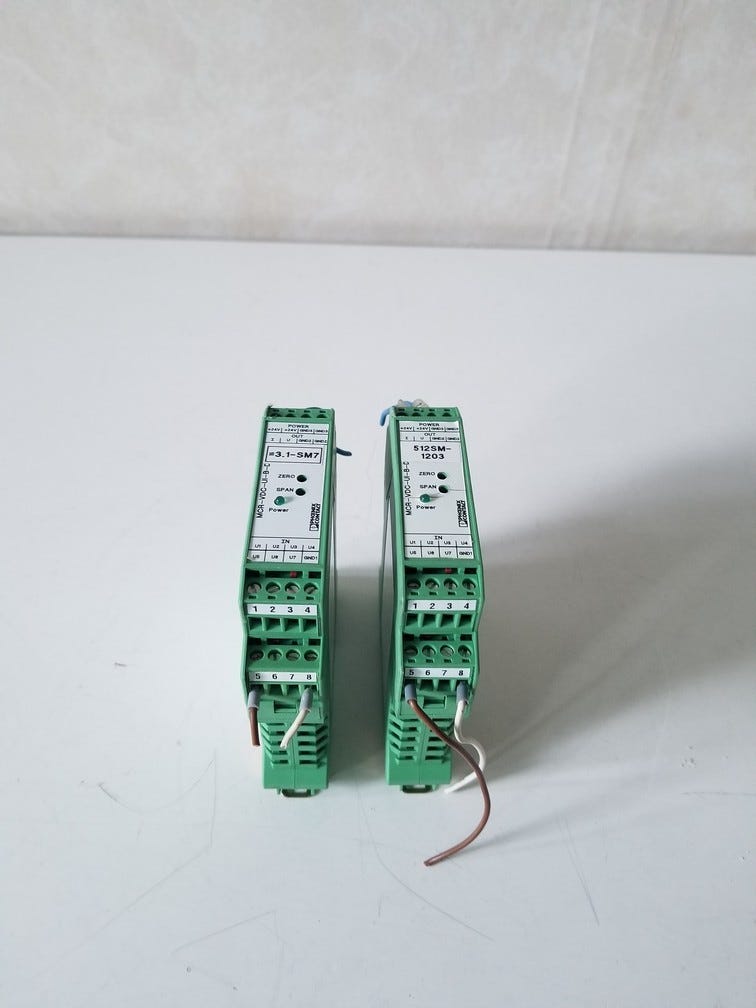

2x, Phonenix Contact MCR=VDC-UI-B-D Voltage Transducer 281116

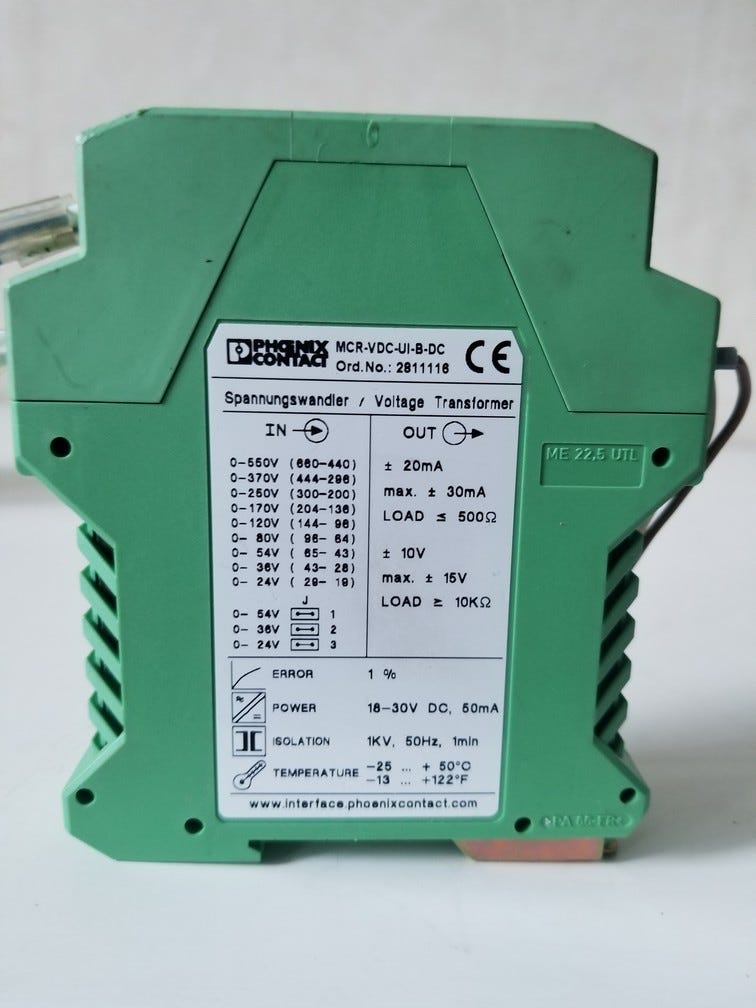

Description of the input ± 550 V input

Input voltage range -550 V DC ... 550 V DC

The input resistance of voltage input 550 kΩ

Maximum input voltage ± 660 V DC (ungrounded)

± 100 V DC (to earth)

Impulse form DC voltage

Description of the input ± 370 V input

Input voltage range -370 V DC ... 370 V DC

The input resistance of voltage input 370 kΩ

Description of the input ± 250 V input

Input voltage range -250 V DC ... 250 V DC

The input resistance of voltage input 250 kΩ

Description of the input ± 170 V input

Input voltage range -170 V DC ... 170 V DC

The input resistance of voltage input 170 kΩ

Description of the input ± 120 V input

Input voltage range -120 V DC ... 120 V DC

The input resistance of voltage input 120 kΩ

Voltage output signal -10 V ... 10 V

Max. voltage output signal ± 15 V

Load/output load voltage output > 10 kΩ

Ripple < 50 mVPP

Current output signal -20 mA ... 20 mA

Max. current output signal ± 30 mA

Load/output load current output < 500 Ω

Ripple < 50 mVPP
