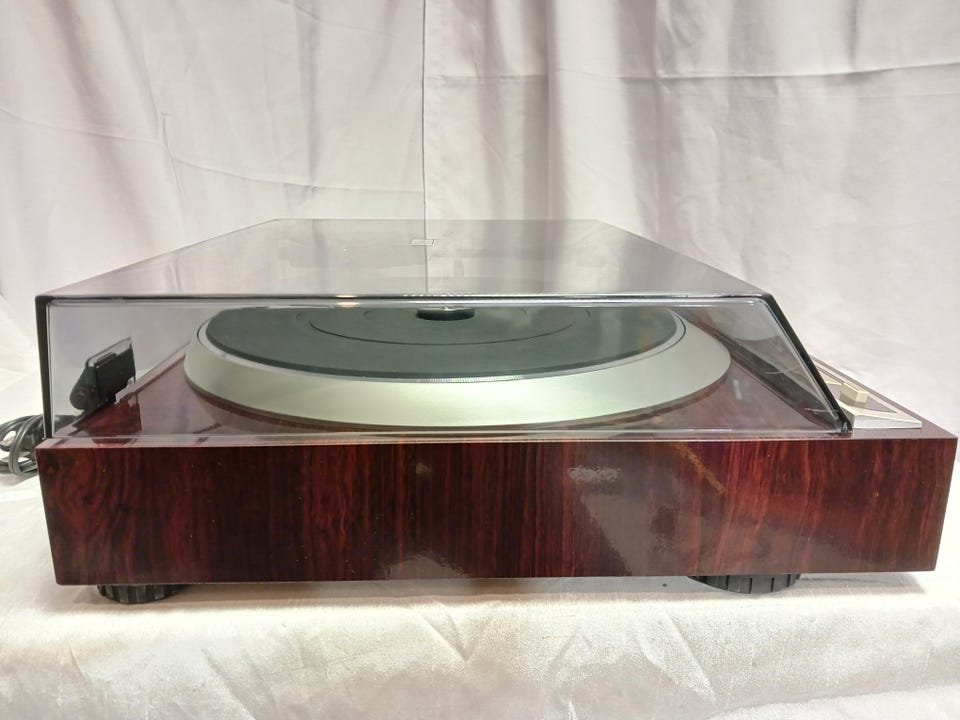

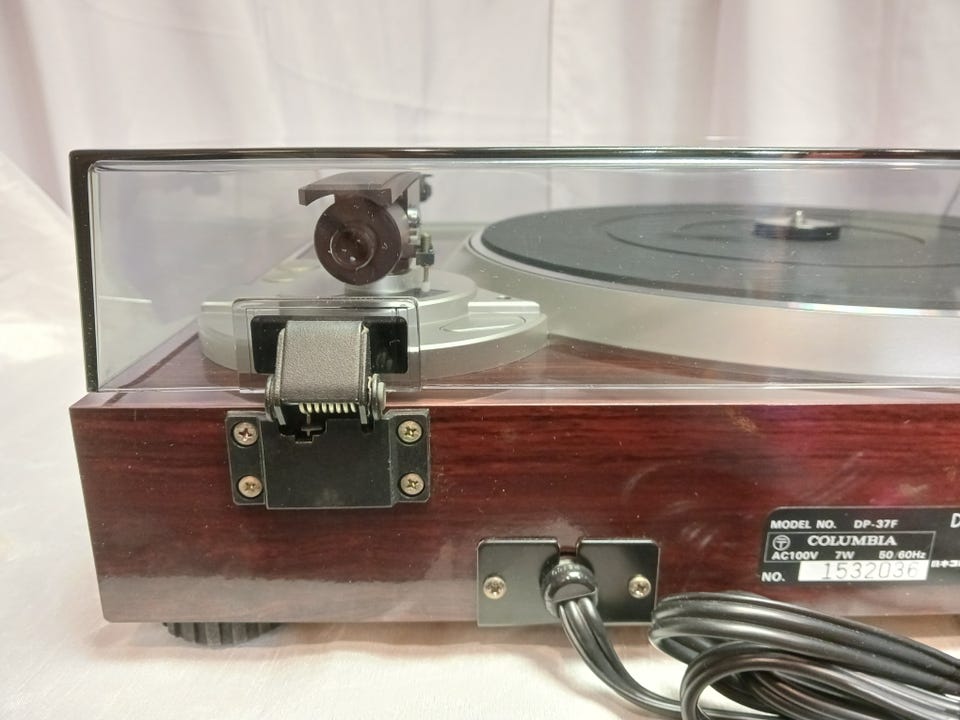

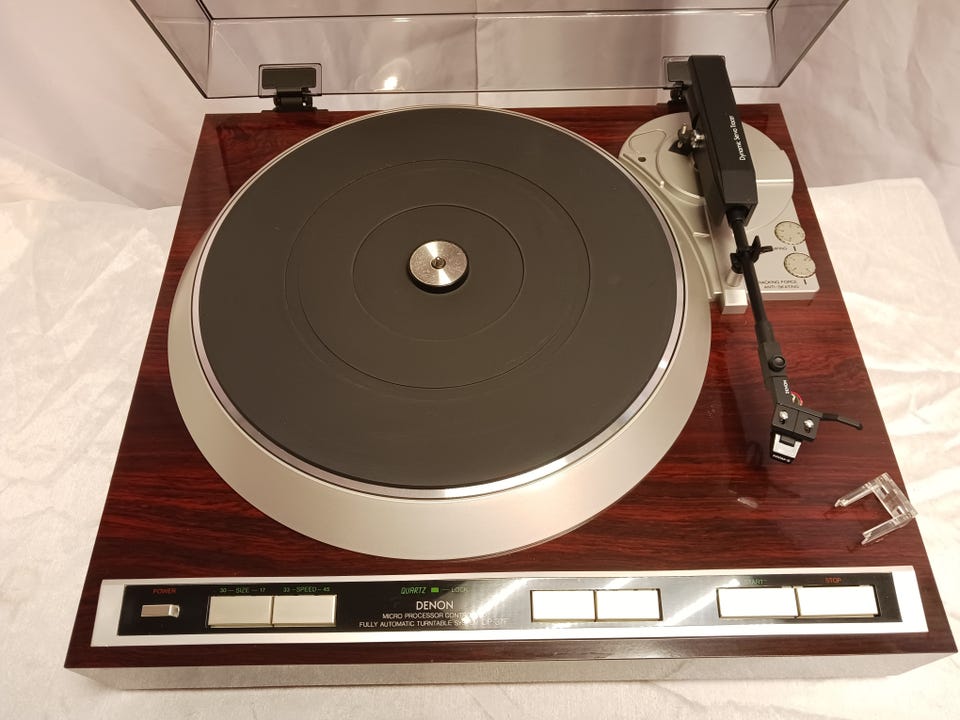

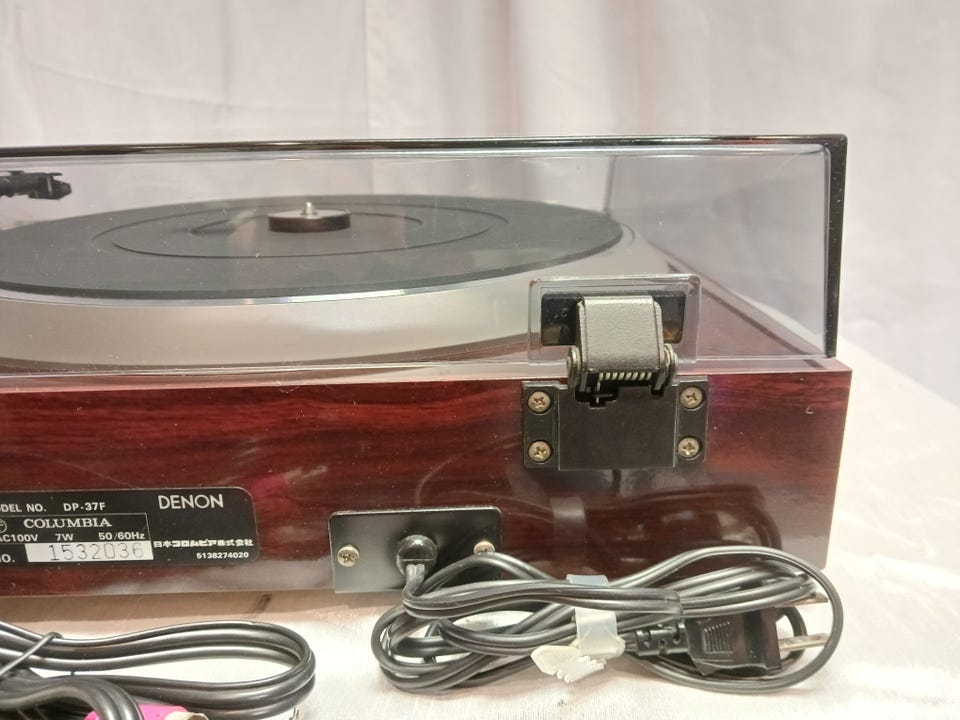

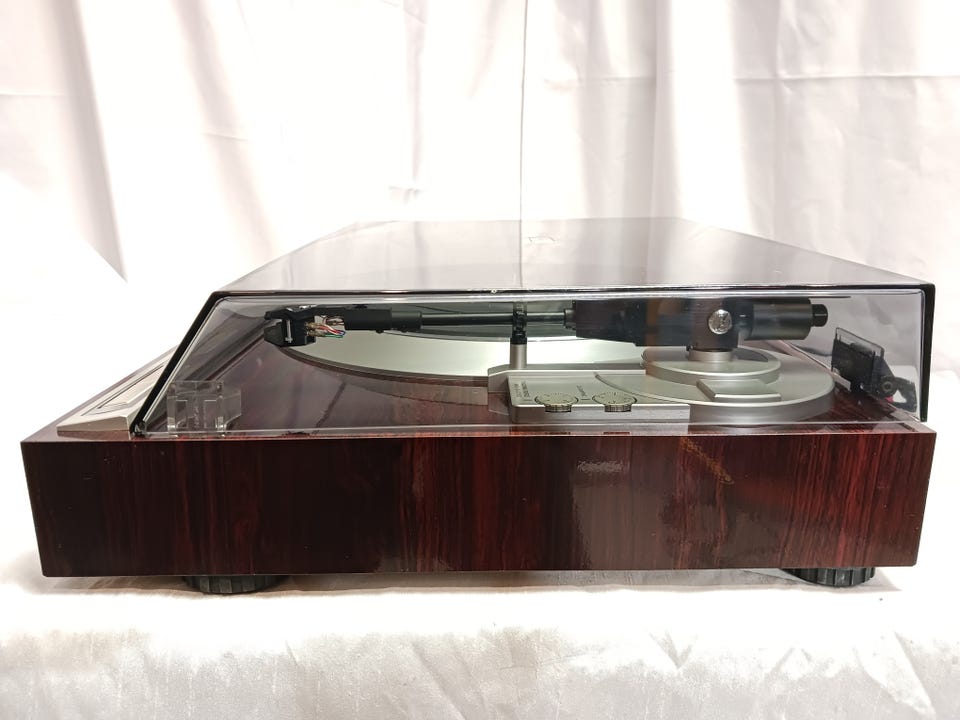

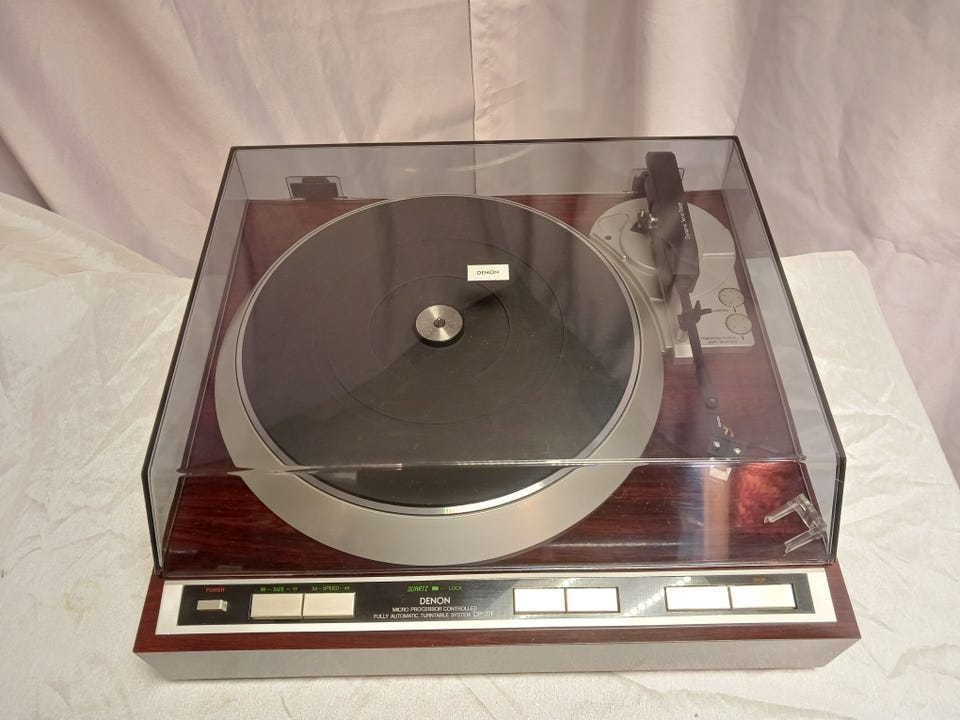

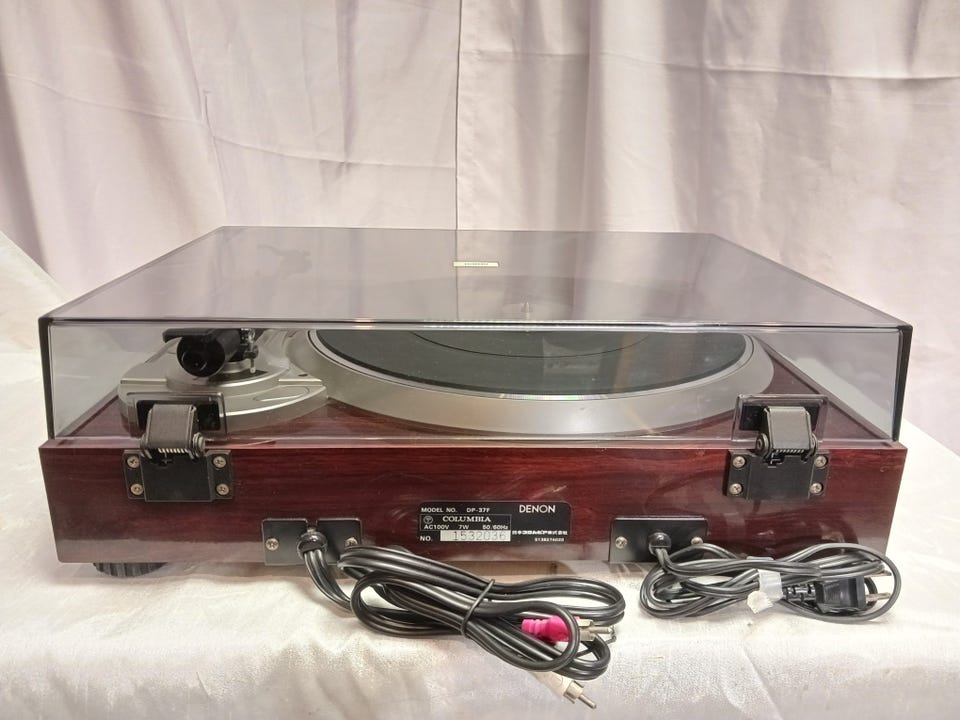

Denon DP-37F täysautomaattinen vinyylisoitin

Erinomaisessa kunnossa levysoitin. 100V laite ja muuntaja mukaan.

Commentary

A full auto player equipped with an arm that employs a dynamic servo tracer.

The turntable uses a DENON quartz turntable with magnetic recording detection method.

Stable rotational performance has been achieved by adding a bidirectional servo to the combination of magnetic recording detection method and quartz lock.

An electronically controlled contactless tone arm equipped with a dynamic servo tracer is used for the tone arm.

In the dynamic servo tracer, the low-frequency resonance due to the compliance of the cartridge and the effective mass of the tone arm is electronically damped in both horizontal and vertical directions, effectively suppressing the deterioration of crosstalk and cross-modulation distortion.

The arm body uses a light mass straight arm.

A mirror-finished cabinet has been adopted for the cabinet.

Model Rating

Type Full auto player

Phono Motor Section

Drive system DENON quartz, bidirectional servo type direct drive

Number of revolutions 33 1/3, 45 rpm

Wow flutter 0.012% Wrms or Less (Rotating System)

0.02% Wrms or Less (JIS)

Signal-to-noise ratio 78 dB or more

Startup time Within 2 seconds (33 1/3 o'clock)

Load characteristic 0% (Needle Pressure 80g, Outermost Circumference)

Turntable Aluminum Die-cast 30 cm

Arm Section

Type Dedicated Shell Replacement Straight / Dynamic Balance Type, Electronic Needle Pressure Application, Dynamic Servo Tracer

Effective length 220mm

Overhang 16mm

Needle pressure adjustment range 0 ~ 3g (0.1g per scale)

Applicable Cartridge Dead Weight Approx. 4 ~ 9g (Including Screws and Nuts)

Anti-skating Contactless electronic

Head shell PCL-30BK

Shell dead weight 3.3g

Type MM Type

Model Name DL-65

Output voltage 2.5mV

Playback frequency 20 Hz to 30 kHz

Needle pressure 1.8 ± 0.3g

Needle exchange DSN-65:¥5,000

Accessory function Lifter switch

Repeat switch

Pwer 100 VAC, 50Hz/60Hz

Power consumption Approx. 7W

External dimensions Width 434x Height 145x Depth 410 mm (With Dust Cover Closed)

Weight Approx. 7.5 kg
